Storage Silo
CYprocess storage hoppers and silos — also called powder storage bins or day bins — hold powders and granules in SS304 or SS316L vessels with mirror-polished internals (Ra ≤ 0.2 µm) and radiused corners. Vibrators, fluidisers, weighing modules, level switches and sanitary outlet valves are available.
Shanghai-built. Drawings come with the quotation, and material certificates are available on request. Factory and documents
1 / 3
Overview
About Storage Silo
How this equipment works in powder handling lines and what to consider when selecting it.
Construction

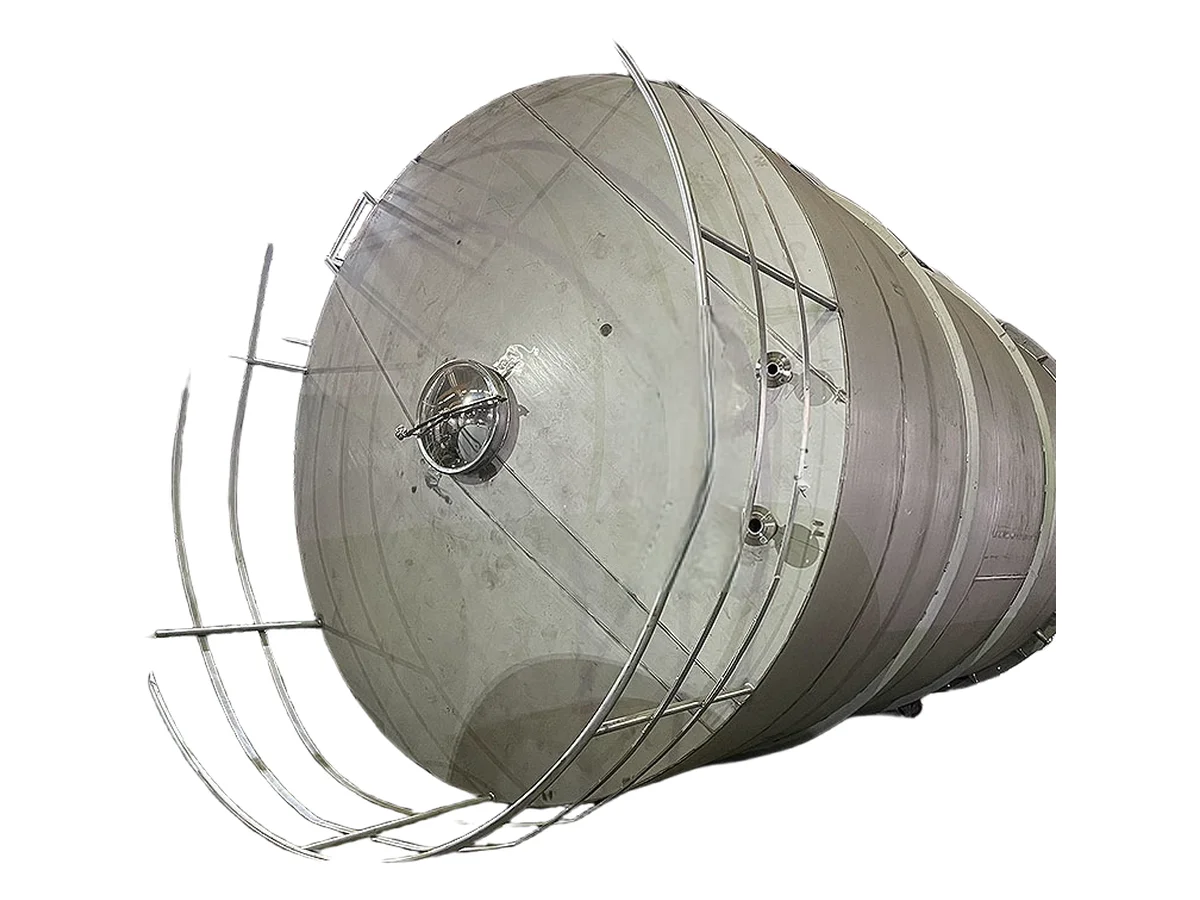

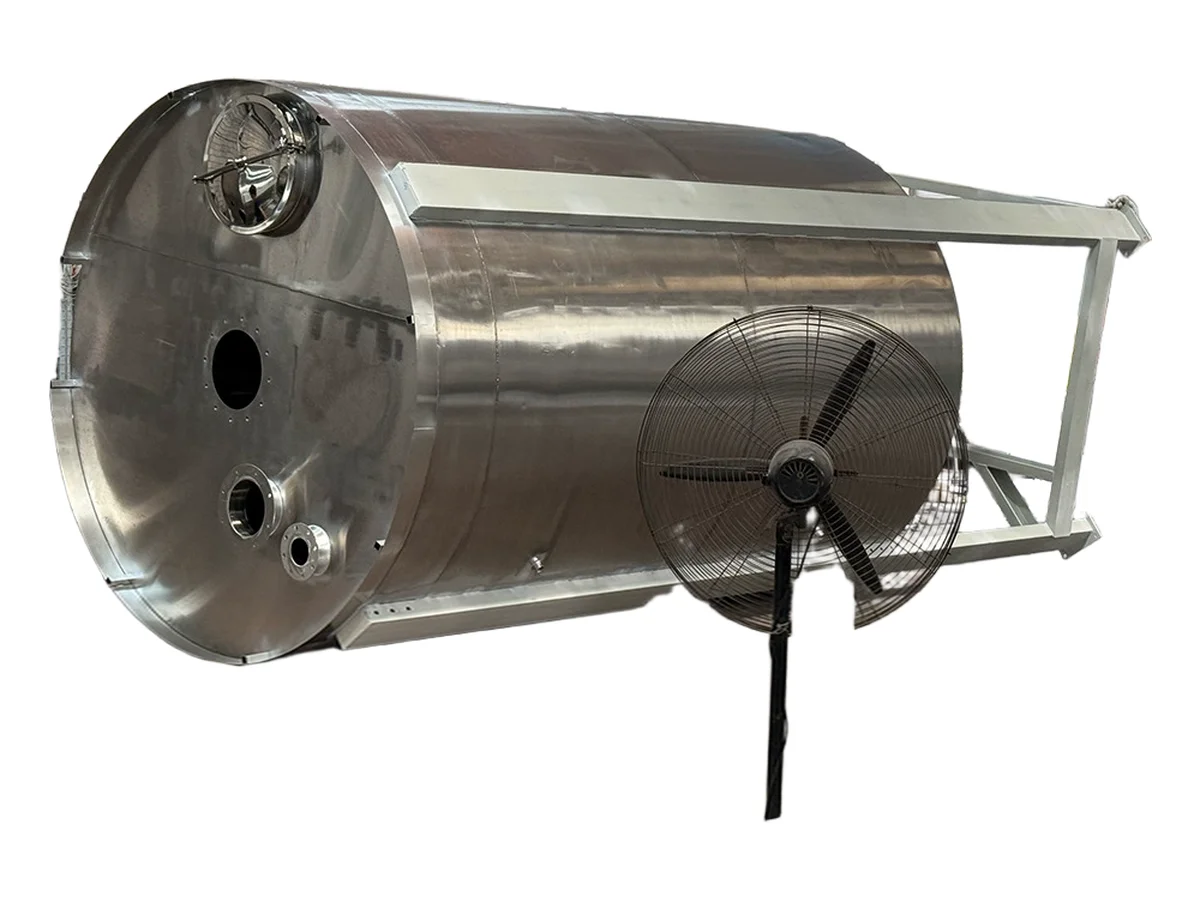

Square round-corner or cylindrical shells with all corners radiused, so there are no dead corners where powder can hang up. Internals are mirror polished to Ra ≤ 0.2 µm and the outer surface to Ra ≤ 0.8 µm; every weld is bevelled, argon-arc welded on both sides and then ground flush and polished. Fabrication is stiff enough to hold its shape and keep the vessel dust-tight in service.
Options and integration
Discharge aids such as vibrators, fluidisers and agitators keep poor-flowing powders moving. Weighing modules turn the bin into a batching vessel and level switches allow automatic refill, while the outlet feeds the next machine through a valve, feeder or screw. Fixed hoppers or mobile IBC bins — on castors where clean-room floors must be protected — cover most plant layouts.
Where it fits in the process
Features
Key Features
Design points that make the Storage Silo practical for industrial powder plants.
Specifications
Typical Specifications
Final sizing depends on material properties, capacity and plant layout. Request a project review for a tailored proposal.
Model range
| Model | Wall (mm) | Diameter (mm) | Height (mm) | Inlet flange | Outlet flange |
|---|---|---|---|---|---|
| CY-SH-200 | 2.5 | 600 | 850 | DN125 | DN150 |
| CY-SH-400 | 2.5 | 800 | 1150 | DN150 | DN200 |
| CY-SH-600 | 3 | 900 | 1350 | DN150 | DN200 |
| CY-SH-800 | 3 | 1000 | 1450 | DN200 | DN200 |
| CY-SH-1000 | 3 | 1100 | 1550 | DN200 | DN250 |
| CY-SH-1200 | 3 | 1200 | 1635 | DN250 | DN250 |
| CY-SH-1500 | 4 | 1200 | 1750 | DN250 | DN250 |
| CY-SH-2000 | 4 | 1400 | 2290 | DN300 | DN250 |
| CY-SH-3000 | 4 | 1500 | 2180 | DN300 | DN300 |
| CY-SH-4000 | 5 | 1700 | 2315 | DN300 | DN300 |
Standard CY-SH hoppers in SS304 with polished internals; SS316L, heavier walls and custom geometry available. Dimensions are indicative — actual sizes follow the order drawing.
General specifications
| Volumes | 200 - 4000 L standard; custom volumes and connections to plant layout |
|---|---|
| Wall thickness | 2.5 - 5 mm, size dependent |
| Geometry | Square round-corner conical or cylindrical, all corners radiused |
| Internal finish | Mirror polish Ra ≤ 0.2 µm inside / Ra ≤ 0.8 µm outside |
| Inlet / outlet | DN125 - DN300 flanges |
| Construction | SS304 / SS316L |
| Accessories | Vibrator, fluidiser, level switch, weighing modules |
| Mobile IBC | 200 - 1200 L with sanitary outlet valve, castors |
Materials
Suitable Materials
Powder and granule categories typically specified with a storage silo. Suitability is confirmed per project from bulk density, particle size, moisture and process conditions.
Food powders
flour, starch, sugar, milk powder, additives
Pharmaceutical solids
API, excipients, granulates
Chemical powders
pigments, resins, fine chemicals
Battery materials
cathode, anode, conductive carbon
Plastics & granules
granules, masterbatch, compounds
Not sure whether your material will convey? Send us a sample description and we will confirm before quotation.
Industries
Industries Served
Sectors where storage silo units are specified today.
Project experience
Where this equipment is running
Selected projects that include storage silo.
New Energy
Vacuum Conveying & Ton-Bag Packing for NCM / Anode Graphite
Hunan, China · 2024
Read case
New Energy
300 m Dense-Phase Transfer for LFP Powder with Ceramic Pipeline
Guizhou, China · 2023
Read case
Food
Screening & Vacuum Feeding for Food Ingredient Mixing
Shanghai, China · 2024
Read case
Chemical
Multi-Floor Vacuum Conveying for Fluorochemical Powders
Changshu, China · 2023
Read caseApplications
Process Applications
Process points where this equipment is typically installed, from bulk intake through to packing.
Downloads
Catalogs & Datasheets
Technical documents related to this product and our powder handling range.
FAQ
Storage Silo FAQ
Common questions about selection, integration and quotation.
From the batch size or the refill interval you want, together with the material's bulk density. The outlet geometry then follows the material's flow behaviour, because a hopper sized on volume alone can still bridge or rat-hole if the outlet and slope are wrong.
System partners
Related Products
Equipment commonly paired with Storage Silo in complete powder handling lines.
Engineering support
Enquire about Storage Silo
Share your material, capacity and plant layout. Our engineers will confirm sizing and send a tailored proposal.
