How is the correct mesh selected?

The aperture follows the smallest particle you need to pass and the largest you need to reject. We confirm it from your particle size distribution and, where the duty is critical, from a sample test before the screen is built.

Can the screen handle sticky or damp powders?

Free-flowing powders screen easily. Where product is damp or cohesive we review vibrator type, deck angle and anti-blinding measures before recommending a configuration, and may suggest a larger screening area to keep capacity.

Why screen before conveying or packing?

Oversize lumps and tramp material jam rotary valves, block pipelines and spoil pack weights. Screening immediately before conveying is the cheapest point in the line at which to remove them, and it gives a more consistent product to the customer.

What information is needed for a quotation?

Please provide the material, bulk density, required capacity, mesh or particle size range, number of fractions, connection sizes and the construction or hygiene standard required.

Material Intake

Vibrating Screen

Name: Vibrating Screen
Brand: CYprocess
Availability: InStock

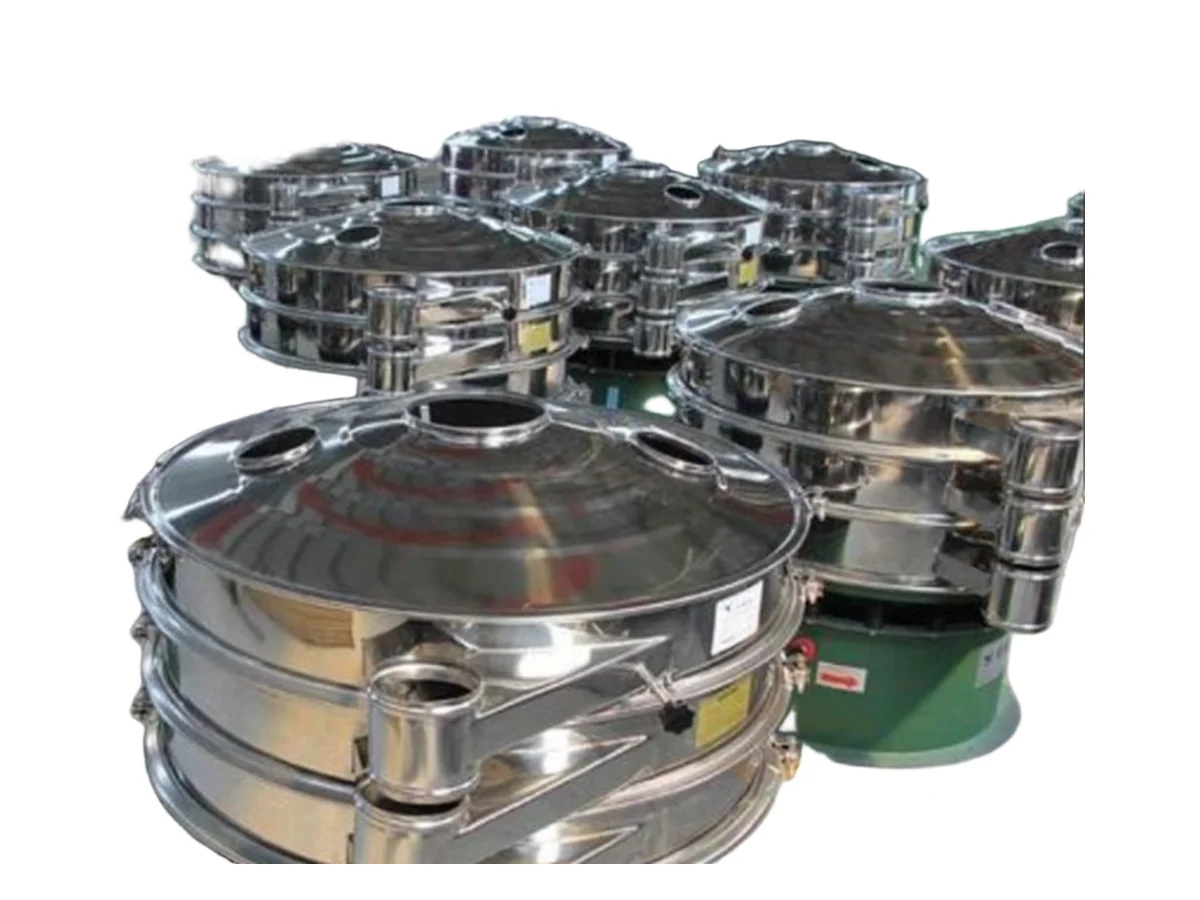

CYprocess vibrating screens — also called vibro sifters or powder graders — classify powders and granules and remove oversize particles, agglomerates and foreign bodies before conveying, dosing or packing. Single- and multi-deck designs are supplied in stainless contact construction.

View Details Request a Quote All Products

Shanghai-built. Drawings come with the quotation, and material certificates are available on request. Factory and documents

1 / 2

Overview

About Vibrating Screen

How this equipment works in powder handling lines and what to consider when selecting it.

Working principle

Product is spread across one or more screen decks and moved forward by vibration. Particles smaller than the mesh pass through, while oversize material and foreign bodies travel to a separate discharge. This protects downstream valves, feeders and packers and keeps product quality consistent.

Options and integration

Single-deck units cover simple safety screening; two or three decks split the product into defined fractions. Decks change quickly for product changeover, covers and outlets are dust-tight, and the screen normally sits directly under a bag dump station, a hopper or a vacuum feed point.

Where it fits in the process

Material Intake

Conveying

Dosing

Mixing

Packaging

Features

Key Features

Design points that make the Vibrating Screen practical for industrial powder plants.

Single- and multi-deck screening in one body

SS304 / SS316L product-contact options

Quick-change screen decks for fast product changeover

Low-noise vibration motors with dust-tight covers

Removes oversize, agglomerates and foreign bodies

Compact footprint on a fixed or mobile frame

Integrates with bag dump, hopper and vacuum feed points

Specifications

Typical Specifications

Final sizing depends on material properties, capacity and plant layout. Request a project review for a tailored proposal.

Type	Circular / linear vibrating screen
Decks	1-3 decks typical
Construction	SS304 / SS316L contact options
Mesh	Application-specific aperture
Drive	Vibration motor(s)
Sealing	Dust-tight covers and outlets
Integration	Bag dump, hopper, vacuum feed

Materials

Suitable Materials

Powder and granule categories typically specified with a vibrating screen. Suitability is confirmed per project from bulk density, particle size, moisture and process conditions.

Food powders

flour, starch, sugar, spices, additives

Chemical powders

pigments, dyes, resins, fine chemicals

Battery materials

cathode, anode and conductive carbon

Minerals & fillers

limestone, quartz, talc, alumina

Granules & pellets

plastic granules, masterbatch, fertiliser

Not sure whether your material will convey? Send us a sample description and we will confirm before quotation.

Applications

Process Applications

Process points where this equipment is typically installed, from bulk intake through to packing.

Safety screening after bag dump

Food additive and flour grading

Battery material de-agglomeration check

Chemical pigment oversize removal

Protecting rotary valves and feeders

Pre-screening ahead of mixers

Final check before packing
