Block Crusher
CYprocess block crushers — also called lump breakers or de-agglomerators — reduce compacted cakes and agglomerates from silos, big bags or dryers back into free-flowing granules. Gentle size reduction protects screens, valves and feeders downstream and keeps line throughput stable.
Shanghai-built. Drawings come with the quotation, and material certificates are available on request. Factory and documents
1 / 4
Overview
About Block Crusher
How this equipment works in powder handling lines and what to consider when selecting it.
Function

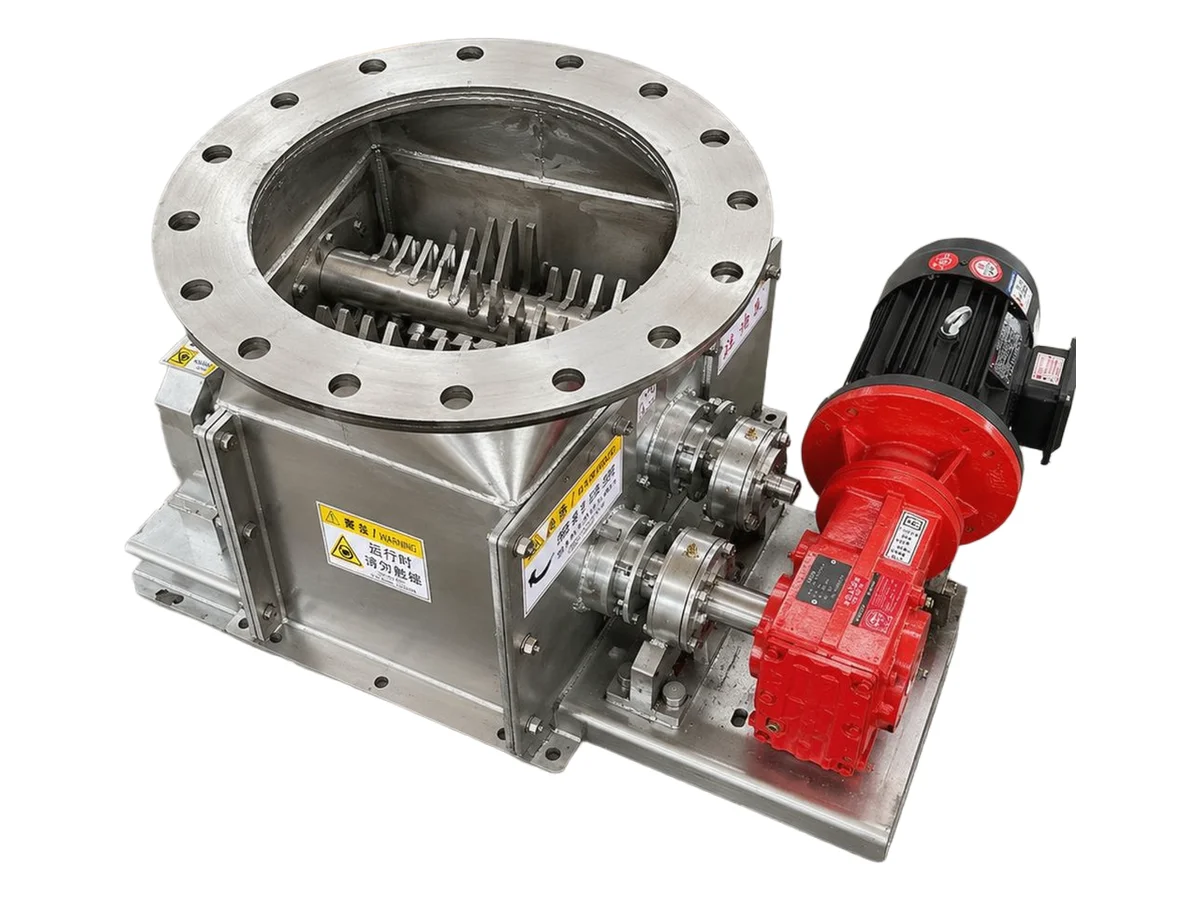

Caked or agglomerated powder enters the breaking zone, where rotating elements reduce it to free-flowing granules. It is a breaker rather than a mill: the aim is to restore flowing granules, not to reduce particle size, so dust and fines generation stay low. Product discharges straight to the next machine.
Options and integration
Units mount under hoppers, big bag outlets or dryer discharges, or inline in a duct. Product-contact parts are available in SS304 or SS316L and the crushing elements are replaceable. A block crusher is normally followed by a vibrating screen, screw feeder or vacuum conveyor.
Where it fits in the process
Features
Key Features
Design points that make the Block Crusher practical for industrial powder plants.
Specifications
Typical Specifications
Final sizing depends on material properties, capacity and plant layout. Request a project review for a tailored proposal.
Model range
| Model | Duty | Motor power (kW) | Inlet (inch) |
|---|---|---|---|
| CY-BC-6 | Heavy duty | 2.2 - 3.7 | 6 |
| CY-BC-10 | Super heavy duty | 5.6 - 7.5 | 10 |
| CY-BC-12 | Extra heavy duty | 7.5 - 11.2 | 12 |
Heavy-duty lump breakers for hardened set lumps, returned cake and bag-house fines. Motor ratings converted from the standard HP range; inlet size can be adapted to the upstream chute.
General specifications
| Type | Lump breaker / block crusher |
|---|---|
| Feed | Compacted cakes and agglomerates |
| Construction | SS304 / SS316L options; carbon steel available |
| Drive | Gear motor, sized to the application |
| Mounting | Hopper outlet or inline duct |
| Downstream | Vibrating screen, screw feeder or vacuum conveyor |
Materials
Suitable Materials
Powder and granule categories typically specified with a block crusher. Suitability is confirmed per project from bulk density, particle size, moisture and process conditions.
Food powders
flour, starch, sugar, cocoa, milk powder
Chemical powders
pigments, dyes, resins, fillers
Battery materials
cathode and anode powders, conductive carbon
Minerals & fillers
limestone, quartz, clay, talc
Pharmaceutical solids
granulates, excipients, actives
Not sure whether your material will convey? Send us a sample description and we will confirm before quotation.
Applications
Process Applications
Process points where this equipment is typically installed, from bulk intake through to packing.
Downloads
Catalogs & Datasheets
Technical documents related to this product and our powder handling range.
FAQ
Block Crusher FAQ
Common questions about selection, integration and quotation.
Where powder has compacted in a silo, big bag or dryer and no longer flows, or where agglomerates would block a screen, valve or feeder. Breaking lumps early avoids line stoppages and lets the following equipment run at its design rate.
