Gate Valve (Slide Gate)
CYprocess slide gate valves — also called knife gate or flat gate valves — isolate hoppers, silos, mills and ash outlets with a flat plate across a round or square opening. Manual, pneumatic, electric and electro-hydraulic actuation is available for building-material, metallurgy, chemical and power duties.
Shanghai-built. Drawings come with the quotation, and material certificates are available on request. Factory and documents
1 / 3
Overview
About Gate Valve (Slide Gate)
How this equipment works in powder handling lines and what to consider when selecting it.
Working principle

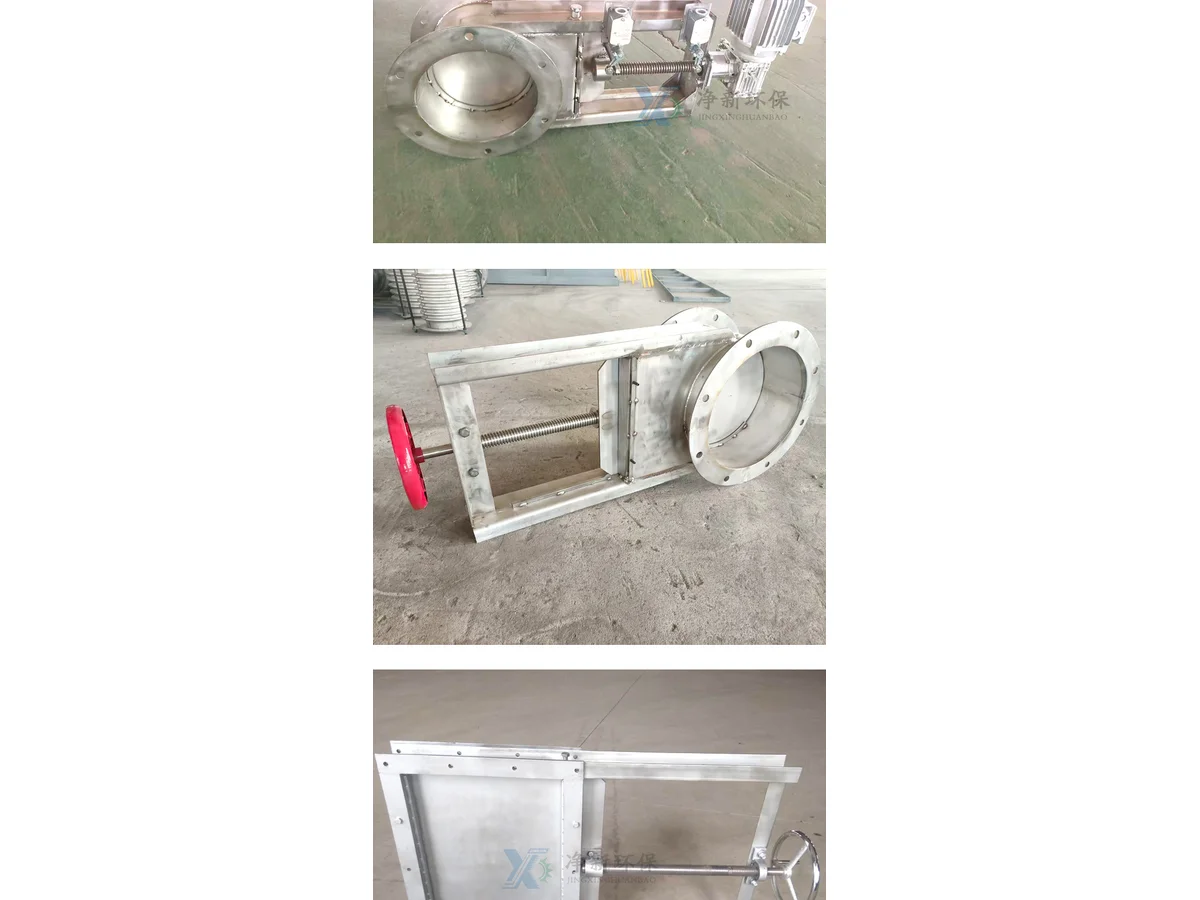

A steel frame guides a flat gate plate across the opening. The actuator — handwheel, air cylinder, electric push rod or electro-hydraulic unit — drives the plate horizontally to open or close the orifice. Single- or double-layer plates and round or square flanges match the hopper or duct connection.
Size and duty
Common openings run from about Ø200 to Ø800, or the equivalent square size. Carbon-steel frames and plates are standard, with stainless or lined builds for corrosive or abrasive ash. Gates are widely used under dust-collector hoppers, mills, kilns and storage silos, often as the maintenance isolation above a discharge device.
Where it fits in the process
Features
Key Features
Design points that make the Gate Valve (Slide Gate) practical for industrial powder plants.
Specifications
Typical Specifications
Final sizing depends on material properties, capacity and plant layout. Request a project review for a tailored proposal.
| Type | Slide / knife gate, single or double layer |
|---|---|

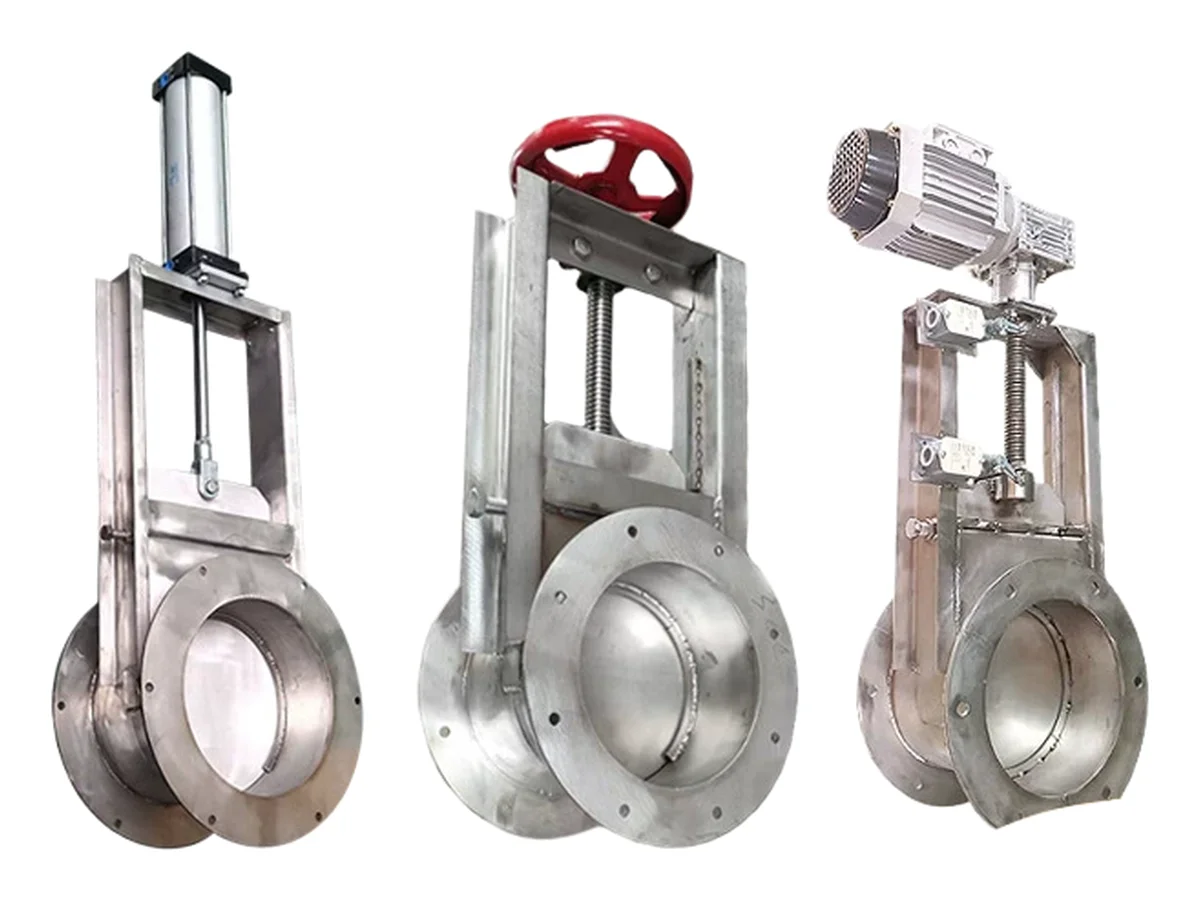

| Actuation | Manual / pneumatic / electric / electro-hydraulic |
| Opening | Round or square; typically about Ø200 - Ø800 |
| Construction | Carbon steel frame and plate; stainless options |
| Duty | Powder, ash and granular isolation |
| Mounting | Under hoppers, silos, mills and ducts |
| Sealing | Metal-to-metal, or with a replaceable seat |
Materials
Suitable Materials
Powder and granule categories typically specified with a gate valve (slide gate). Suitability is confirmed per project from bulk density, particle size, moisture and process conditions.
Combustion & process ash
fly ash, coal ash, boiler bottom ash
Minerals & cement
cement, limestone, quartz, sand
Chemical powders
pigments, resins, soda ash
Food powders
flour, starch, sugar, salt
Metal & foundry dust
foundry sand, mill scale, metal fines
Not sure whether your material will convey? Send us a sample description and we will confirm before quotation.
Applications
Process Applications
Process points where this equipment is typically installed, from bulk intake through to packing.
Downloads
Catalogs & Datasheets
Technical documents related to this product and our powder handling range.
FAQ
Gate Valve (Slide Gate) FAQ
Common questions about selection, integration and quotation.
A gate valve suits straight-through, full-bore isolation where the opening must be completely clear when the valve is open, which matters for lumpy ash and gravity discharge. A butterfly is more compact and less costly for duct duty and line isolation.
System partners
Related Products
Equipment commonly paired with Gate Valve (Slide Gate) in complete powder handling lines.
Engineering support
Enquire about Gate Valve (Slide Gate)
Share your material, capacity and plant layout. Our engineers will confirm sizing and send a tailored proposal.
