Pulse Valve

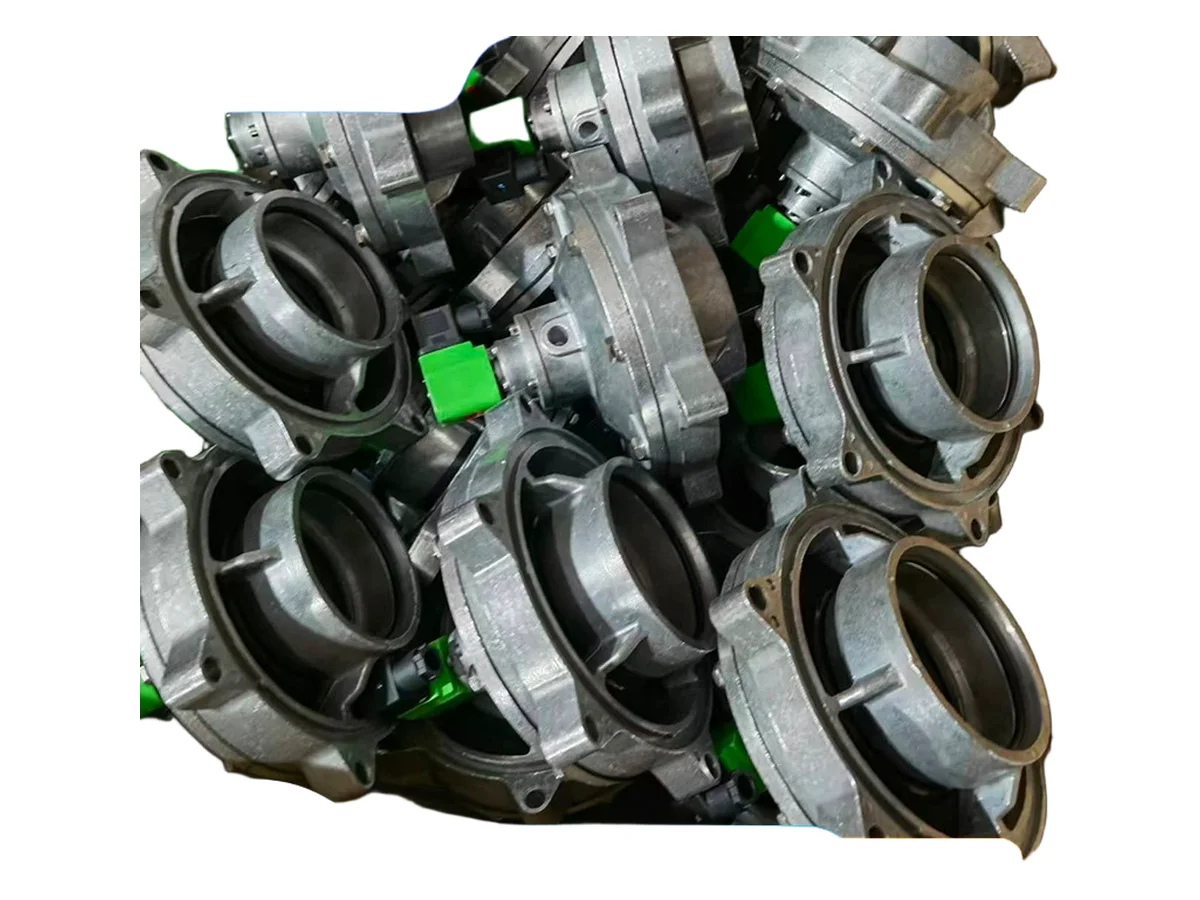

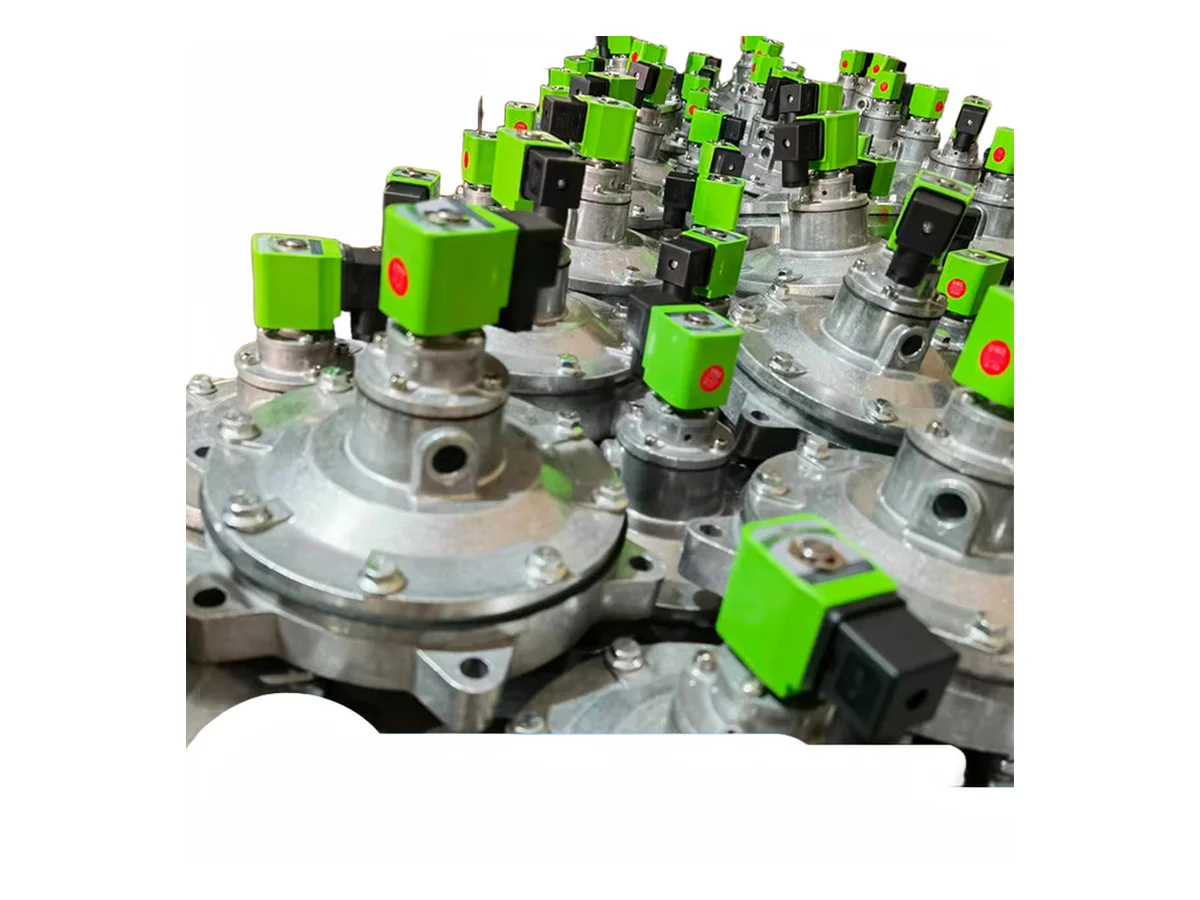

CYprocess electromagnetic pulse valves — also called diaphragm valves or pulse-jet valves — deliver the short, high-flow compressed-air bursts that clean bag filters. Right-angle (90°) and submerged designs are supplied with matching controllers and spare diaphragms.
Shanghai-built. Drawings come with the quotation, and material certificates are available on request. Factory and documents
1 / 3
Overview
About Pulse Valve
How this equipment works in powder handling lines and what to consider when selecting it.
Right-angle valves
Right-angle valves connect the compressed-air header to the blow tube, and the smooth internal path delivers a compliant cleaning pulse. Typical port sizes run from about Ø20 to Ø102 (¾" to 4") in single or double diaphragm form, with threaded or flanged outlet connections.
Submerged valves and spares
Submerged, or embedded, valves mount inside the air box for lower pressure drop and improved flow, which is preferred where header pressure is limited. Ports cover about Ø25 to Ø102 with double-diaphragm options at the larger sizes. Controllers, pilot solenoids and spare diaphragms support planned maintenance.
Where it fits in the process
Features
Key Features
Design points that make the Pulse Valve practical for industrial powder plants.
Specifications
Typical Specifications
Final sizing depends on material properties, capacity and plant layout. Request a project review for a tailored proposal.
| Types | Right-angle · Submerged (embedded) · Straight-through options |
|---|---|
| Port size | About Ø20 - Ø102 (¾" - 4") |
| Diaphragm | Single or double diaphragm |
| Mounting | Header / blow tube, or in-box submerged |
| Accessories | Pulse controller, diaphragms, pilot solenoids |
| Duty | Compressed-air pulse cleaning of bag filters |
| Body | Die-cast aluminium or equivalent, coated |
Materials
Suitable Materials
Powder and granule categories typically specified with a pulse valve. Suitability is confirmed per project from bulk density, particle size, moisture and process conditions.
Combustion & process ash
fly ash, boiler dust, kiln dust
Cement & minerals
cement, limestone, quartz dust
Chemical powders
pigments, resins, carbon black
Food & grain dust
flour, starch, sugar, feed dust
Wood, metal & abrasive dust
sanding dust, metal fines, ceramic dust
Not sure whether your material will convey? Send us a sample description and we will confirm before quotation.
Applications
Process Applications
Process points where this equipment is typically installed, from bulk intake through to packing.
Downloads
Catalogs & Datasheets
Technical documents related to this product and our powder handling range.
FAQ
Pulse Valve FAQ
Common questions about selection, integration and quotation.
A right-angle valve mounts outside the air box and connects to the blow tube at 90°. A submerged valve sits inside the air box, which shortens the flow path and lowers pressure drop, so it is preferred where the available header pressure is limited.
