Valves
Diverter Valve

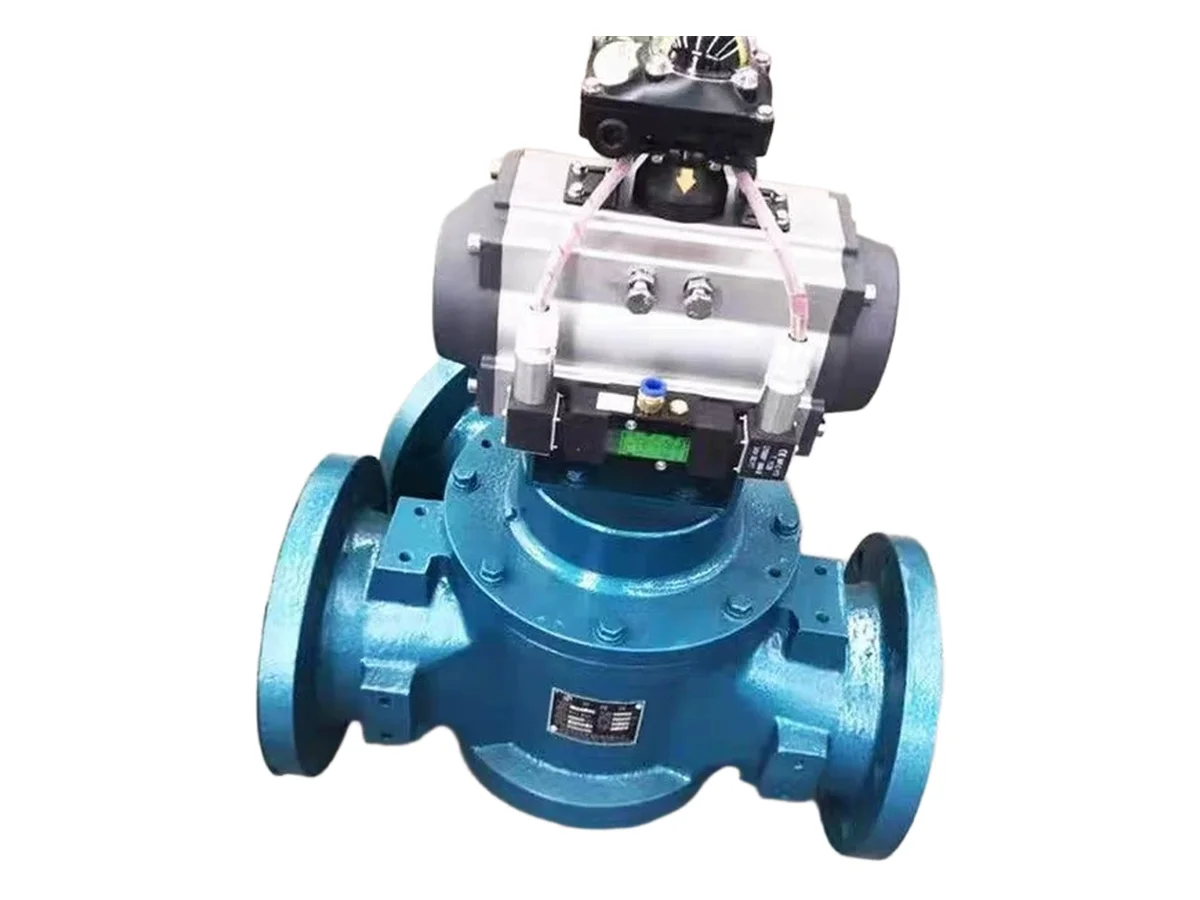

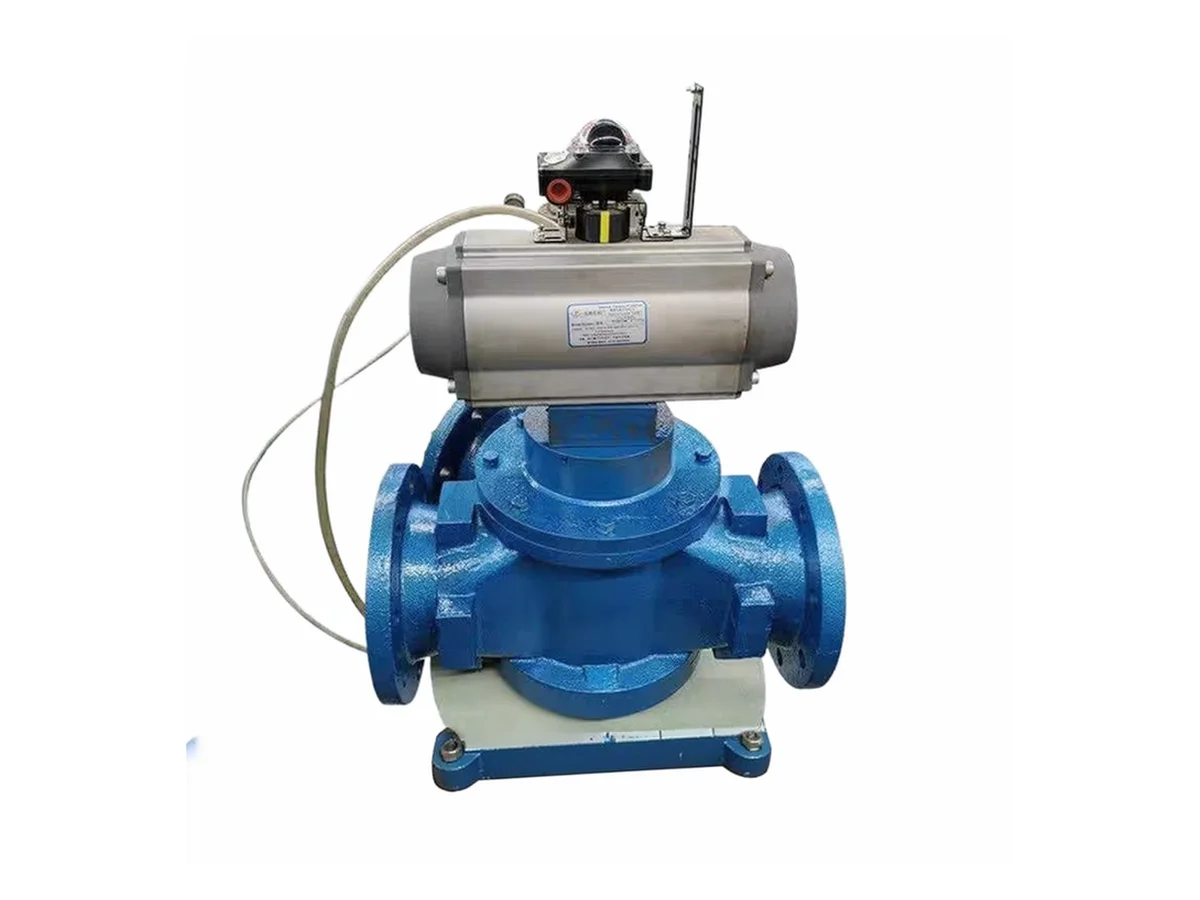

CYprocess diverter valves — also called pipe switching valves — route powder between multiple destinations in vacuum or pneumatic conveying systems. Sealed construction and smooth internals keep conveying efficient and limit product retention at the switching point.
Shanghai-built. Drawings come with the quotation, and material certificates are available on request. Factory and documents
1 / 3
Overview
About Diverter Valve
How this equipment works in powder handling lines and what to consider when selecting it.
Function
The valve sits in the pipeline at a branch and directs the conveying stream to one destination at a time. Because powder lines are sensitive to turbulence and dead pockets, the internal path is kept smooth and the seat closes dust-tight so product cannot leak into the idle branch.
Options and integration
Two-way and multi-way patterns cover most routing needs, in dilute and dense phase duty. Actuation is pneumatic or electric, the body is supplied in stainless, carbon or wear-resistant steel, and the valve mounts between flanges so it can be added to an existing line.
Where it fits in the process
Features
Key Features
Design points that make the Diverter Valve practical for industrial powder plants.
Specifications
Typical Specifications
Final sizing depends on material properties, capacity and plant layout. Request a project review for a tailored proposal.
| Ports | 2-way / multi-way options |
|---|---|
| Actuation | Pneumatic / electric |
| Duty | Vacuum and pressure conveying |
| Construction | SS / CS / wear-resistant options |
| Sealing | Powder-duty dust-tight seats |
| Mounting | Flanged pipe spool |
| Sizes | Matched to the conveying line diameter |
Materials
Suitable Materials
Powder and granule categories typically specified with a diverter valve. Suitability is confirmed per project from bulk density, particle size, moisture and process conditions.
Chemical powders
pigments, resins, fine chemicals
Food powders
flour, starch, sugar, milk powder
Battery materials
cathode, anode, conductive carbon
Minerals & cement
cement, limestone, quartz, fly ash
Plastics & granules
granules, masterbatch, compounds
Not sure whether your material will convey? Send us a sample description and we will confirm before quotation.
Project experience
Where this equipment is running
Selected projects that include diverter valve.
Applications
Process Applications
Process points where this equipment is typically installed, from bulk intake through to packing.
Downloads
Catalogs & Datasheets
Technical documents related to this product and our powder handling range.
FAQ
Diverter Valve FAQ
Common questions about selection, integration and quotation.
A two-way valve switches between two routes. Where more destinations are needed, either several two-way valves are staged in series or a single multi-way valve is used. The choice follows the layout and how often the routes change.
System partners
Related Products
Equipment commonly paired with Diverter Valve in complete powder handling lines.
Engineering support
Enquire about Diverter Valve
Share your material, capacity and plant layout. Our engineers will confirm sizing and send a tailored proposal.
